Batch EmailReport
|
|
|
|
|
Introduction
|
|
Batch EmailReport
for Clarion 55-10... ABC. This template sends emails with
the Clarion native Document Send Template and
allows your customers to
send multiple Clarion reports in the most user-friendly way - right in the body of email
messages.
Compatible with ABC Clarion Report, CPCS, IceTips,
RPM, DAS, and Tintools report templates.

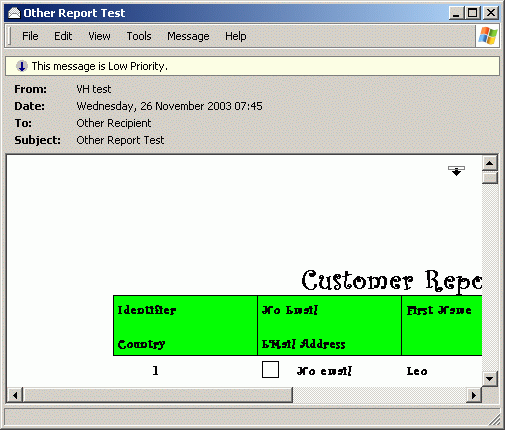

The picture on
the right shows how the template
works. Please do not touch the arrow!!! Why not download our
'Try
before buy'
shareware version of the template for testing? You can have a quick look at
emails generated by
the template
as well.
|
|
|
|
The batch EmailReport template works in
conjunction with the C55-C10... Document Send ABC Template. |
This template formerly had a number of problem
in C55. It appears that Soft Velocity has |
significantly improved it lately. So in
Clarion 6-10... it
works without any glitches. |
Like its older brother - EmailReport template
- Batch EmailReport has very much the |
same functionality. So you can send reports in
the email body, send email as RTF attachment, save |
reports as HTML, DOC, or RTF to disc with MS Word
or save them in silently. The main difference - |
you can do all this in the batch mode. So with one
click of a button you can send either |
the same or individual reports to as many recipients as
you like. Additionally, in this template you |
can define up and down navigation arrows with
any GIF image including animated ones |
so you can make your emails as vivid as you
like :-). Plus there is an option to put a note |
in the email body as well. |
Batch EmailReport is compatible with Clarion,
CPCS, IceTips, RPM, DAS, and Tintools. |
It also has an embed template doing all
emailing/saving functions, which means |
Batch EmailReport can be used with a much wider range of
basic report templates. |
To ensure that your customers will be able
to print/preview the emailed report with |
any email program and/or Operating System,
the report
can be duplicated |
as an attachment of RTF type. This file can be
opened/printed even |
with Windows WordPad program, so no 3rd party
program is required. |
Download generated by template RTF file for testing. |
|
Advantages of using template:
|
- Reports may be sent in batch mode so your customers
don't face the
annoying repetitive work of
sending hundreds of similar emails.
- Once Received, the report is immediately
available for reading or printing, so users
don't have to worry
about what, for instance, PDF means.
- Alternatively, the report can be duplicated in
an attached RTF or
sent as a RTF attachment only. This
format is supported by MS Word. If it's not installed, Windows
(95-v.7)
automatically opens it with WordPad.
- Before embedding a report into the body
of an email you can add a short explanatory note.
- If required, you can play a sound file
when the email is being opened.
- Reports can be saved to disc in RTF
format. In this mode you will
see just created RTF in default
Windows RTF editor and will be able to save it anywhere and with any name you
like. There is also an option to do this in silent mode.
- The template gives you direct access to MS
Word, so you can save reports
not only as RTF, but also as DOC,
HTML etc. You can even email and fax your reports right
from Word using your address book.
- As to the technical side, EmailReport - as
is the case with all our templates - is a white box template
(no extra DLLs to ship)
- It does not make any changes to
either Clarion native or 3rd party templates.
-
The template is compatible with all major
3rd party report templates: CPCS, IceTips, RPM, DAS previewer, Tintools
previewer
-
There is no need to
manually select basic report template
-
Network friendly - can be
run by many network users simultaneously
New features
-
Landscape report support
-
Direct support for
Icetips previewer
-
No need to manually
select basic report template
-
Option to define email
priorities (High, Low, Normal)
-
new internal help
-
Last, but not least, you
can define navigation arrows with any GIFs, even animated:
|
|
|
|
Installation
|
|
Run the installation wizard. It will guide
you through a few simple steps.
|
IMPORTANT: If
you are using Clarion 5-6, after selecting Clarion5-Clarion6 directory wizard
|
will offer to install it into C:\Clarion5(6)\Clarion8
or C:\C55\Clarion8 directory respectively.
|
So don't forget to remove the last \Clarion8. But even if you do
forget -
no problem.
|
Just uninstall template and re-run the installation.
|
Then register the template. To do this you
need to: Open Clarion (no
application must be open).
|
Go to menu Tools (Setup) -> (Edit)
Template Registry -> Register. |
batchrpt.tpl and
then hit Open button
|
You can find it in Clarion7(8,9,10...)\accessory\template\win
|
for Clarion >= 7 and in Clarion*\Template
- for all others.
|
Using Template
|
|
Global Extension Template |
Follow these few simple steps to enable report
emailing/saving. |

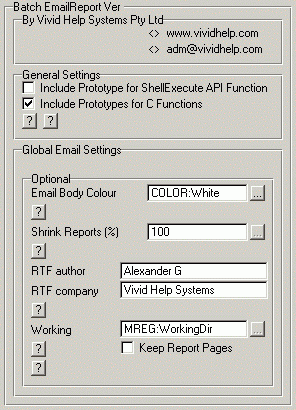

The first step is to install Global Extensions
for both Document Send and |
Batch EmailReport templates: |
|
 |
|
You have the option to define internal RTF document
settings - RTF author, RTF company. |
Your customers will never see them.
Alternatively, you may choose to leave |
your "signature" here. |
By default, the template creates a subdirectory \VH\ under your working directory
|
to keep temporary template files. On some networks
this may cause problems.
|
So the last prompt is the place where you can override this default behaviour.
|
The template creates a global variable associated with this prompt
MREG:WorkingDir
|
So you may specify any other directory, for
instance:
MREG:WorkingDir = 'C:\Temp'
|
In this case the template will use C:\Temp on each workstation to build all required files.
|
Even if this directory doesn't exist, the template will create
it. It will even create
|
nested directories for you!
|
So if you prime this variable to say C:\Temp\A\B\C you will find that directory structure.
|
And if you don't use this variable the template will
|
create its own working directory \VH\ on the server under your working
|
directory and use
that.
|
Normally Keep report pages checkbox should be OFF. When ticked it will
|
save all temporary WMF report pages in the working directory.
|
You might need it when using non-standard reports to estimate
|
picture sizes. Do not forget to set it
to OFF before program release.
|
If you do forget to do this, however, it will not cause any inconveniences to your end-users.
|
The only difference is that their working directory will be
slightly larger.
|
|
Procedure Extension Template
|
The picture below shows all the settings you
need to define in the report extension.
|
To open a Tab other than the first one just move the cursor
over it.
|
You have to insert Local extensions for both
Batch Email report and Document Send |
templates into each report to be emailed.
|
|

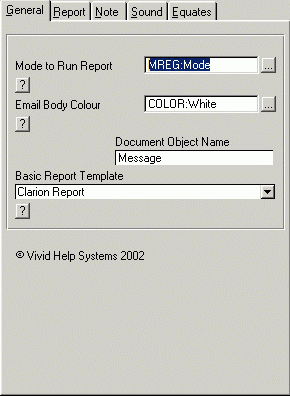

General Tab |
Report behaviour depends on one global
variable only - MREG:Mode |
You can use either numbers or defined
equivalents.
We've put them on the last tab |
so you can copy and paste them into your code: |
0 - MREQ:Print
1 - MREQ:InBodyRTF
2 - MREQ:InBody
3 - MREQ:InRTF
4 - MREQ:Save
5 - MREQ:SilentSave
|
Hence, if this
value equals 0 - report will be printed, |
1 - emailed in body & RTF etc. |
So it is a kind of Batch EmailReport Global Request. In other words, if you say: |
MREG:Mode = MREQ:EmailInBody; YourReport() - report will be emailed |
in email body etc. |
You have to select the basic report template
from the |
Batch EmailReport Local extension combo (see picture below): |
|
|
|
It defaults to whatever report template it can see in
the current report procedure. |
It is important to stress that this is merely a suggestion. So if
choose to |
you can reselect any other report template. You
may wish to do this only in exceptional |
situations. For instance when you want to apply
an embed template to solve some unusual |
requests of end-users (email and print at the same time etc.). Or you have some uncommon |
hybrid say CPCS + RPM. We provide examples for each of those directly supported templates |
in Clarion*\Examples\BatchRep directory. |
Or Clarion7(8,9,10...)\Lessons\Conduct\Demo in Clarion
7-10.... |
So you can
investigate recommended template settings there. |
IMPORTANT:
If you want to try to use
this template with any report template |
other than directly supported (Clarion, CPCS,
IceTips, RPM, DAS,
and Tintools), |
we would strongly recommended that you download
a free shareware version |
of the template to make sure it will work. You
need to select Other from the Basic |
report template prompt and use the embed template. You
should do the same if you |
want to use it in one of the supported
report templates. In template |
examples you can see how this embed can be
used. |
As to Document Object name, it is already
primed to Document send default
|
object name, so you don't need to touch
it unless you have this ABC object renamed. |
Have a look at Local extension template settings
(picture on the bottom of this page). |
IMPORTANT: If you have MS Word
installed you can significantly improve |
performance in the Save mode by Opening Windows explorer/Folder
Options/File |
Types and settings RTF type to NOT use DDE for
opening. |
|
Report Tab |
You can specify the name of a RTF attachment file either from a variable or |
by hard-coding it from the prompt as well (using say 'ReportCopy' will create |
attachment ReportCopy.rtf). If you use a variable just
insert its name. |
or find it from the lookup button. No exclamation marks are required! |
You have to bear in mind that RTF uses the same shrinking factor as does
the |
image in the email body. |
You can define the image shrinking factor applicable for both body and RTF reports |
and specify variable names for RTF file name and path for saving reports. |
Starting from version 6 you have full control of report sizing (both in Body and RTF). |
By default the template supports A4 reports. So the only thing you
need to |
do is to specify whether the report has Landscape layout. |
For non-standard report sizing, you need to
make note of the following: |
To define report margins (for RTF) and the report width and height
the template generates and uses 4 global variables: |
MREG:RTFleft, MREG:RTFtop, MREG:RTFwidth, and
MREG:RTFheight. |
These values should be specified in 1/1000th of an Inch (Clarion default units). |
The simplest way to estimate your report sizes is to collect WMFs by setting
the global Keep report pages checkbox ON. |
Then open any of WMFs with Windows MS Paint |
and from Image -> Attributes menu find out the sizes in Inches. |
Don't forget to multiply it by 1000. |
To repeat: It is only necessary to follow
these procedures if you use non-standard report sizing. |
You will detect immediately whether or
not the report is standard size because improper sizing dramatically decreases report
quality. |
So if you notice this problem you may need to check report sizes: |
|
 |
|
Otherwise you can completely ignore Position Group.
|
The type of prompt used for all 4 size variables
|
lets you define them either with variable or implicitly as a number.
|
So you can use predefined variables. You can define and use your own variables for
this.
|
At last you can simply put a margin value right into
the corresponding prompt. As long as you follow
|
standard Clarion syntax you won't have any compile errors.
|
You can define GIF images
to use for navigation up and down arrows. |
With the template we ship a number of arrow GIFs,
but you are free to use any other. |
IT'S VERY IMPORTANT to remember that those
images should be available at runtime. |
So you should ship them with your
application either in the working directory or in a |
subdirectory of your working directory (where
the main EXE is). |
|
Note Tab
|
There is the option to define a heading comment on
the Body Note tab. Just follow plain
|
Clarion syntax and build any letter you like.
This option may be especially useful
|
when you send a report as a RTF attachment only.
So you are able to explain here what to do
|
with the attachment.
|
Everything you add here goes directly into the
embedded email HTML file.
|
So you can use HTML tags as well. (Tag usually starts with something
|
like <font> and ends with </font>. It can be <img> and </img> etc.)
|
If you enjoy doing things the hard way you can consult HTML
|
and MIME documentation. For all others, here is a simple
tip:
|
Use your Outlook Express for visual design. Just create
a new
|
message with it, insert images, text with any font you like etc. and then
|
Save it As a EML file. Done! Now you can open this file with any text editor
|
(say Notepad) and copy and paste HTML tags one by one. Just remember
|
that each tag should occupy one line in the body queue.
|
This restriction comes from the way we build
the message body, not from HTML syntax.
|
To make life easier we put a new-line tag after each line of HTML
|
So if you try to split a tag on more than one line - this tag will get broken
|
by the new-line tag inserted by template.
|
|
Sound Tab
|
You can play audio files when an email is being
opened. You have to specify |
a Sound file and how many times you want it to be
played from its respective tab. |
Like the arrow image files those sound files must be available at runtime. So you |
have to ship them with your application. |
From our experience not all users appreciate
this feature. So it's better |
to show them such 'talking' emails first :-) |
|
Equates Tab
|
It's just a place where you can copy predefined equates for pasting them into your code.
|
It's not used by the template at all. So you can store
anything you like here.
|
|
Document Send Template
|
|
We did our best to apply as little restriction
to this template as possible.
|
So use it as if there is no Batch EmailReport template around.
|
For instance, you can use it to send
attachment files (other than report in
|
RTF; Batch EmailReport takes care of that).
|
You can use both global and static addressing.
There is only one restriction -
|
on the Send Message Settings window (below)
you should use these settings pictured.
|
Maybe you could find other working
combinations, but these, we know for sure, definitely work!
|
|
 |
|
IMPORTANT: All C55 versions up to
current H have an obvious communication bug. |
We've already reported it to Soft Velocity.
Until this bug is fixed you need |
to apply another product of ours - C55 Document Send Template Patch
- to eliminate it. |
You receive the product as a free bonus with Batch
EmailReport template. |
So just follow this link and install it. Out
of curiosity you can try to go without |
it and see what happens... ;-) In Clarion 6
this bug is fixed, so there is no need |
to apply a patch!
|
We have installed fully functional examples for
each report template into
your
|
Clarion*\Examples\BatchRep directory so for various settings you can
investigate them. |
|
TIPS
(you are welcome to send your tips to this area!)
|
1. Remember to select the Basic Report Template Used (clarion,
CPCS...).
|
2. Don't forget to check 2 checkboxes in
Document Send settings
|
3. To save the rtf file do not forget to
specify path in MREG:RTFpath
|
and file name MREG:RTFname (without path and extension)
|
4. In batch mode provide unique RTF file names
not to override
|
just saved reports
|
5. On network all drivers should be mapped
|
6. All template prompts follow standard
Clarion syntax. So do not try to put
|
exclamation mark in front
of them! Or leave string without the quotes.
|
Or wrap a variable in quotes
etc.
|
7. With report templates not supported directly always choose Other
|
from the Basic template combo and apply Embed template
|
8. If after conversion into C61 your application
goes to GPFs on start up,
|
it has nothing to do with
Batch EmailReport template!
|
It is usually caused by Global
embed inherited from Document Send demo
|
Fuzzy Matcher Init.
You have to move it into Program Setup embed [1000-2000]
|
|
|
Move cursor on top of a Tab to open! |
  |
 |
|
Copyright © 2025
Vivid Help Systems Pty Ltd
|
